Product Details

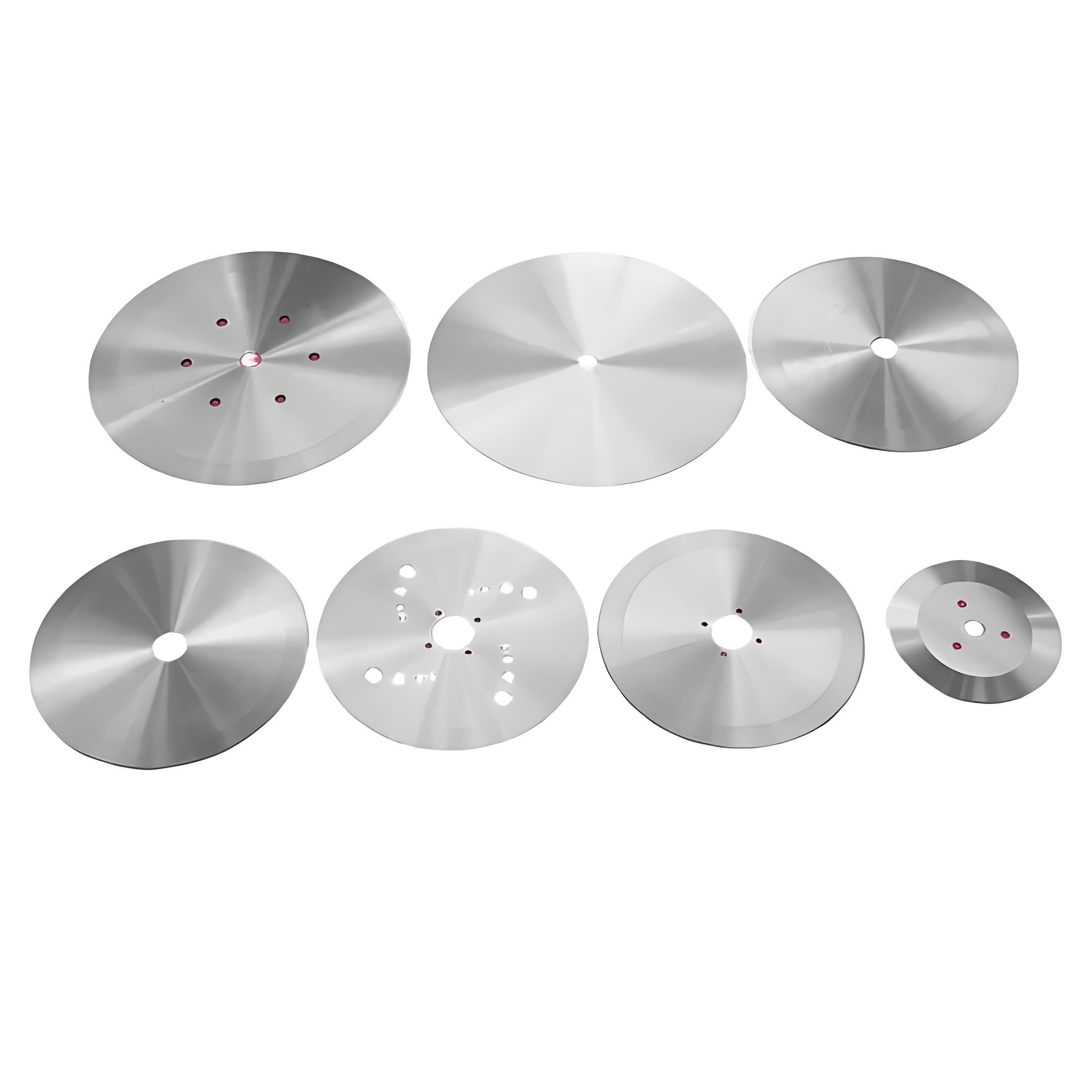

The circular blade is a key component on slitting machines or cutting machines for cutting rubber paper tubes. It is made of high - speed steel. Through multiple precision processes such as forging, turning, heat treatment, and grinding, the blade is ensured to have precise dimensions and good performance. The blade is circular with a sharp cutting edge and an ultra - thin thickness, generally around 1 - 3 millimeters. The diameter varies according to different cutting machine models and cutting requirements, commonly ranging from 60 - 150 millimeters. This kind of blade is installed on the rotating shaft of the cutting machine and is driven to rotate by a motor. The high - speed rotating blade is used to cut materials such as rubber paper tubes. During the cutting process, relying on its high hardness, sharp cutting edge, and high - precision dimensions, the blade can quickly and accurately cut the rubber paper tubes into the required widths, providing high - quality materials for subsequent product processing.

Dimension(mm)	ID(mm)	OD(mm)	Thickness(mm)
φ60×φ19×0.27	φ19	φ60	0.27
φ61×φ19.05×0.3	φ19.05	φ61	0.30
φ63×φ19.05×0.254	φ19.05	φ63	0.254
φ63×φ15×0.3	φ15	φ63	0.30
φ64×φ19.5×0.3	φ19.5	φ64	0.30
φ85×φ16×0.25	φ16	φ85	0.25
φ89×φ15×0.38	φ15	φ89	0.38
φ100×φ15×0.35	φ15	φ100	0.35
φ100×φ16×0.3	φ16	φ100	0.30
φ100×φ16×0.2	φ16	φ100	0.20
φ100×φ15×0.2	φ15	φ100	0.20
φ110×φ22×0.5	φ22	φ110	0.50
φ140×φ46×0.5	φ46	φ140	0.50
