Product Demonstration

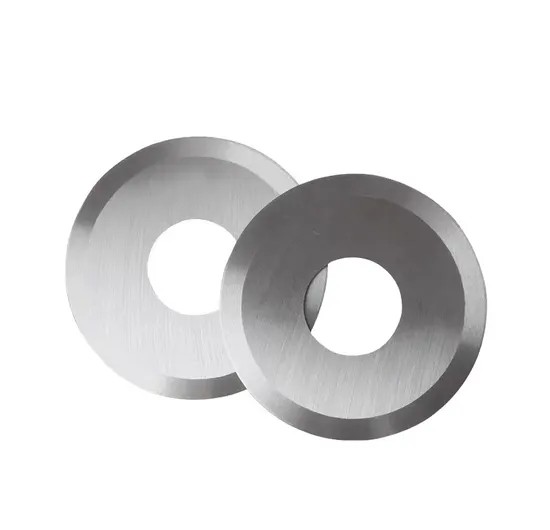

DYYRENT Tungsten Carbide Insert Circular Knife for Paper Tube Slitting
Customized
Small
Cutter
Warranty : 1years
DYYRENT rotary blades with tungsten carbide inserts provide high-shear cutting for paper tubes. Ideal as industrial parts and tools accessories.
| Specification | Details |
|---|---|
| Model NO. | Customized |
| Logo Printing |
Without Logo Printing Customized |
| Size |
Small Customized Customized |
| Type | Cutter |
| Material | High-Speed Steel |
| Certification | ISO 9001:2008 |
| Dimension | Customized |
| Work Type | Cut off |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Transport Package | Wooden Box/Paper Box |
| Specification | Customized |
| Trademark | DYYRENT |
| Origin | Jiangsu, China |
| HS Code | 8208900000 |
| Production Capacity | 10000PCS/Month |
ISO9001:2015
CE Certified
Energy Class A
- Details
- Application
- Parameter
Product Details
Rotary slitter blades are also called circular slitter blades.Their function is mainly to cut wider coils into narrower strips. They are widelv used for slitting non-ferrous metals such as copper and aluminum, stainless steel, silicon steel coils, and high-strength steel coils. According to the material and thickness of the coil. different tool materials need to be chosen for roll shear knives. The main materials of the blade are 5CrW2Si, 6CrW2Si, Cr12Mov, LD, H13, W18Cr4V, H13K, LD and other tool steels and alloy steels, with sharp edges, wear resistance, smooth cuts, smooth products, and good heat dissipation performance. The surface roughness of rotary sliiter knives should be less than 0.002mm, and the flatness and parallelism should be less than 0.001mm. The inner hole of the blade should be +0.03mm to +0.05mm. The concentricity of the outer circle of the cutting edge is 0.005mm. The heat treatment hardness of the blade should be determined according to the material of the blade and the material and thickness of the cutting material. Heat treatment method: vacuum deoxidation treatment and salt bath furnace treatment.| Application |
Materials:
sheet metal, paper, wood, rubber, leather, food, plastic etc.
Cutting Types:
Metal cutting, Tape cutting, Film cutting, Medical material cutting, Paper cutting, Chemical fiber cutting, Fabric slitting, Nonwoven slitting, Aluminum foil cutting etc. |
| Material | Tungsten / Carbide etc. |
| Hardness | HRC 52-92°
(Determine based on the heat treatment performance of different materials) |
| Optional Size |
External diameter: 8-200 mm (can be customized)
Thickness: 1-20mm (can be customized according to customer requirements) |
| OEM/ODM | we have thousands of stock options based on different materials and specifications, and we also provide customized services. Please consult us |
| Lead Time |
Most of them are in stock
Production time for non-stock items: 1 to 15 days |
