Product Details

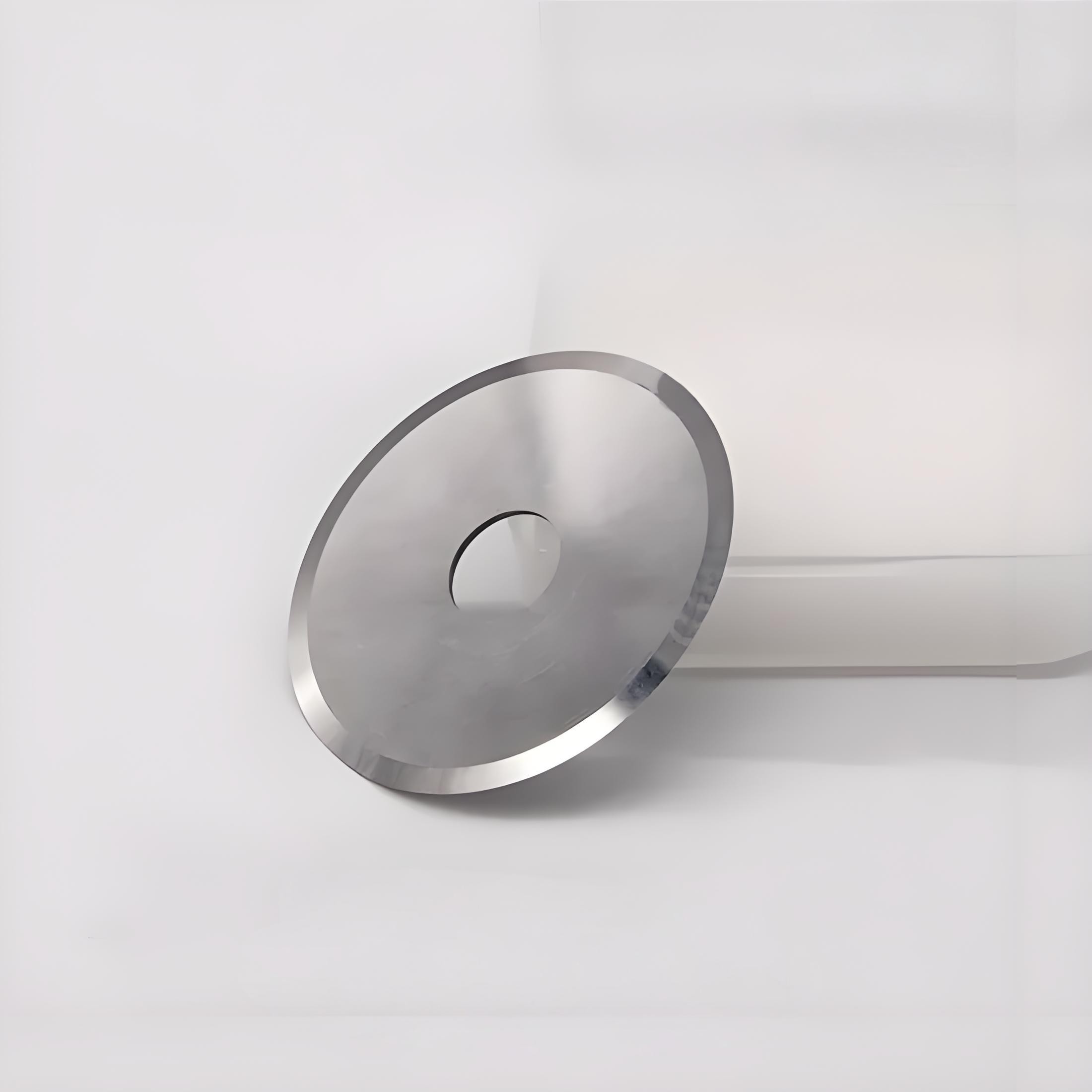

Our slitting blades are crafted with wear-resistant materials and undergo forging, heat treatment, and grinding processes. They offer superior accuracy, wear-resistance, oil-resistance, heat-resistance, and acid/alkali resistance. Ideal for thin and soft-surfaced materials, they maintain precision over extended use without deformation. We provide OEM and custom services based on technical drawings or samples. Our slitting blades boast exceptional processing accuracy: Surface roughness: ≤ 0.002mm Flatness and parallelism: ≤ 0.001mm Diameter size: 300-1000mm Thickness: 0.5-300mm Blades heat treatment hardness: tailored to blade material and cutting material thickness Heat treatment method: vacuum deoxidation and salt bath furnace treatment Materials available for circular blades and knives include SKH-9, SKD-11, LD, W6Mo5Cr4V2AL, H13K, M42, K30, ASP60 power alloy steel, and custom options.

Item No.	O.D x I.D x T(mm)	Item No.	O.D x I.D x T(mm)
1	φ95*φ55 * 2	10	φ240*φ120 * 10
2	φ105*φ32 * 3	11	φ260*φ120 * 10
3	φ105*φ52 * 5	12	φ280*φ160 * 10
4	φ120*φ60 * 5	13	φ300*φ180 * 10
5	φ160*φ80 * 5	14	φ320*φ200 * 10
6	φ200*φ100 * 5	15	φ330*φ200 * 10
7	φ210*φ100 * 5	16	φ360*φ220 * 10
8	φ220*φ100 * 5	17	φ380*φ240 * 10
9	φ220*φ120 * 5	18	φ400*φ260 * 10
